The OzoneLab™ OL80W  the main representative instrument model in our Wall Mounted Line of Ozone Generators, which are designed specifically for laboratory and medical research applications. OzoneLab™ ozone generators are designed to work in conjunction with Oxygen Flow Regulators providing an output of between zero and 1LPM. OL80F/S Right Side

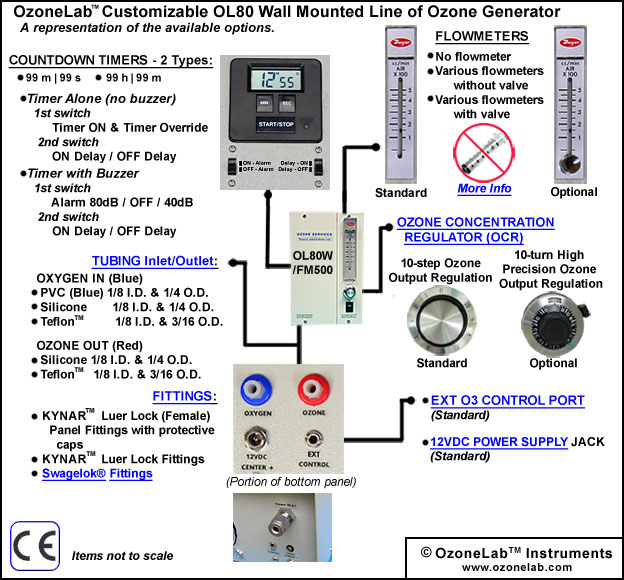

Pricing and model comparison chart

S = Standard | O = Optional | N/A = Not Applicable

No Flowmeter
Generator, Analyzer or Combination Generator
360 Degree View Available 360° View 360° View N/A
Setup Example Available Examples Examples N/A
Model Picture
OL80 Ozone Module (Single Stage) S S S

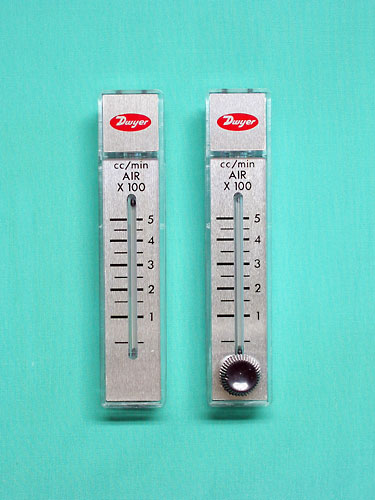

Flowmeter - 500cc/min (Standard) or
Customer Specified (No Valve)
Flowmeter - 500cc/min (Standard) or
Customer Specified
(With Valve - 6-8 week delivery time)
O O O)
10-Step Ozone Output Regulation S S S
10-Turn High Resolution Ozone Output Regulation O O O
External Ozone Output Regulation
(EXT O3 Control Port)
Countdown Timer & Buzzer O O S
Minimum & Maximum
Ozone Gas Flow Requirements
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
Luer Lock Kynar® Ozone Resist Fittings S S S
Swagelok® Fittings
Wall Mounted Enclosure S S S

Instrument Weight

1.5kg/3.0Lb 1.5kg/3.0Lb 1.5kg/3.0Lb
Power Requirements 12VDC
0.7 Amp
0.7 Amp
0.7 Amp
100-240AC/12DC/4Amp Universal Adapter Included Included Included
 Marking Yes Yes Yes

50 - 500 cc/min
Without valve - standard
With valve +$75

OL80W/FM500 - No Valve
OL80W/FM500V - Valve

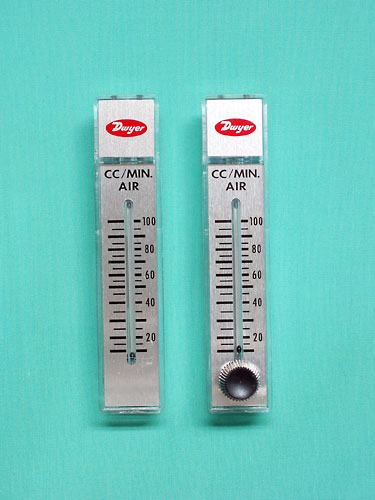

10 - 100 cc/min
Without valve - standard
With valve +$75

OL80W/FM100 - No Valve
OL80W/FM100V - Valve

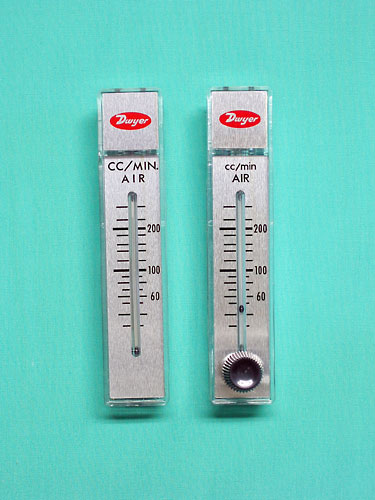

30 - 230 cc/min
Without valve - standard
With valve +$75

OL80W/FM230 - No Valve
OL80W/FM230V - Valve

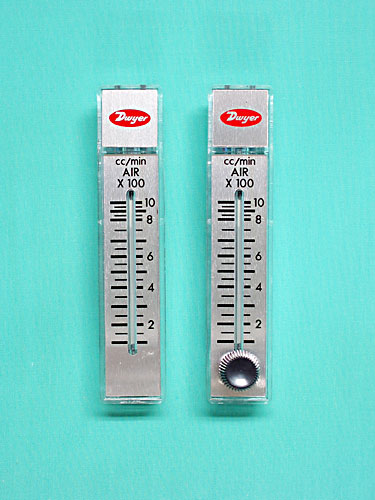

100 - 1000 cc/min
Without valve - standard
With valve +$75

OL80W/FM1000 - No Valve
OL80W/FM1000V - Valve

Please Note:
Clients attempting to fill syringes from the OL80W/Fxxx with a built in flowmeter are risking that repeated and frequent pressurizing of the unit may result in the gradual development of an internal leak.

This is especially the case with clients who reuse plastic syringes; the plunger looses its lubrication and the rubber boot on the plunger becomes sticky causing the whole plunger to become stuck in the syringe barrel. Very high pressure is required to push the plunger out which causes the "O" rings in the flowmeter to "pop" which in turn causes a leak.

Those clients considering purchasing an OL80W might wish to consider ordering an alternative generator without a flowmeter such as our OL80F/S or OL80F/DST.

OzoneLab™ OL80W Technical Data:
Ozone Production
Stabilization Time:

  • 3 minutes to 90% of reference output is reached
  • 6 minutes to 100% of reference output is reached
  • after 10 minutes - 105% of reference output is reached

Mounting Template
O2/O3 Ports: Kynar® (PVDF) Female Luer Lock
Gas Pressure: Standard Range 0-3 p.s.i.
Flow Range: Standard Range 31-1000ml/min || Extended range 5-1000ml/min (MAX)
Humidity: below 90% R.H.
Temperature: Standard range 16-26C || Extended Range 10-30C
Cooling: Air cooled instrument - 3" fan
Enclosure: Aluminum construction with laboratory grade heat tempered coating
Enclosure Size: 5.75 x 11 x 3.75" (W x H x D)
Weight: 4.5 lbs / 2 kg
Warranty: 12 months
Compliance: CE

For applications exceeding outlined conditions of operation, please contact us for more information on custom produced instruments and accessories.

Ozone Output Information

OL80 Module (Single Stage)
Typical Ozone Output for single stage OL80 Ozone Generator
0 0 0 0
1/32 31 0 - 161 0 - 299
1/16 62 0 - 131 0 - 487
1/8 125 0 - 93 0 - 698
1/4 250 0 - 57 0 - 855
1/2 500 0 - 33 0 - 990
3/4 750 0 - 23 0 - 1035
1 1000 0 - 17 0 - 1020

  • OL80 Sample Output Test Report
  • OL80 Ozone Output Graphs

  • OL100 Typical Ozone Output Table
  • Compare OL80 & OL100
  • Compare OL80, OL100, and GE60 units produced between 1994 & 1999
  • How we test our Instruments
  • Note that we are able to provide Custom Ozone Output adjustments in the range of 10% - 100% of the Typical Ozone Output. Contact us for details.
  • Each ozone generator is tested and calibrated separately using 2" H2O back pressure.
  • OzoneLab™ instruments are designed for low flow/high output applications and are not suitable for flow rates above 1000ml/min due to the size of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing with higher pressures - please contact us for more info and/or consultation)

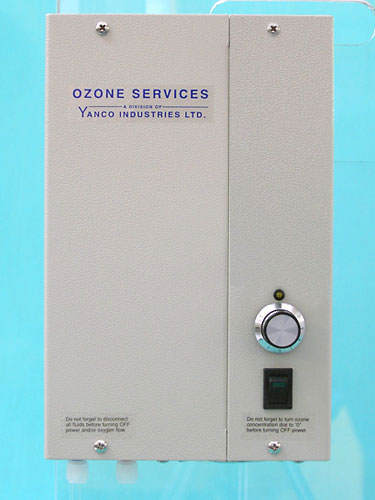

OL80W Illustrations:

  1. Flowmeter
  2. 10-step Ozone Output Flow Regulation
  3. Main Power Switch
  4. 12VDC Power Jack 2.1mm/Center "+"
  5. Oxygen Inlet - Luer Lock (Blue)
  6. Ozone Outlet - Luer Lock (Red)
  7. 3" Cooling Fan
  8. EXT O3 Control Port

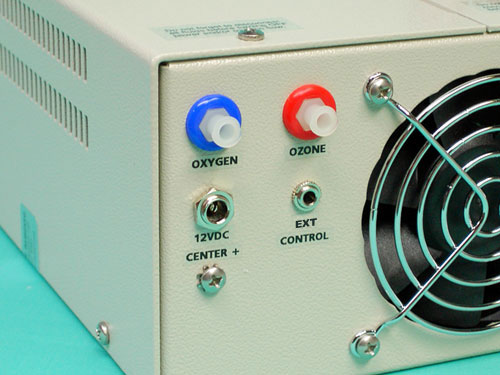

Base of OL80W showing Oxygen Input (Blue), Ozone Output (Red), 12VDC power connection and EXT O3 Control Port

All Luer Lock fittings on OzoneLab™ Ozone Generators and Analyzers are made of ozone resistant Kynar® and come standard with removable reusable protective caps. Specialized colour coded panel fittings are also available.

Ozone Generator Setup Examples

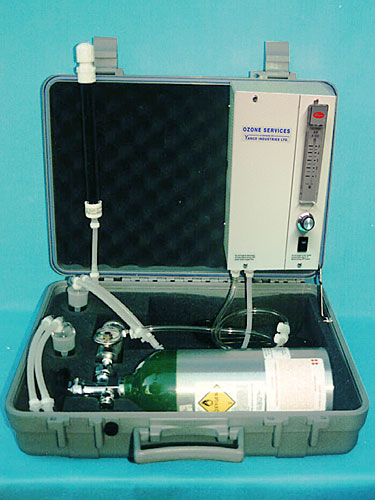

OzoneLab™ Mobility offers clients options for mobile situations.

A full selection of optional ozone accessories is available to clients through our Ozone & UV Accessory Area.
Available Stands
Acrylic Demo Stand

Examples of External Ozone Production & Ozone Flow Control Devices

Foot Switch Control OLW - Transmitter Module C-30Z Ozone Monitor
Foot Switch Control  OLW - Transmitter Module C-30Z Ozone Monitor
