Ozone Analyzer OGA/C-DSThe OLA Line of Ozone Gas Analyzers are very mobile and easy to use instruments designed and produced specifically for laboratory and medical research applications.   The main characteristics of the OLA Ozone Gas Analyzers are:

  • Fast response time and high precision
  • Availability of wide range of customizable and custom-designed modifications
  • Possibility to create OzoneLab™ Tower(s) by combining various types of OzoneLab™ instruments

Pricing and model comparison chart

S = Standard | O = Optional | N/A = Not Applicable
Printer Friendly Version OLA OLA/D OLA/L OLA/DL OLA/DS OLA/DLS
Generator, Analyzer or Combination Analyzer
Only
Analyzer
Only
Analyzer
Only
Analyzer
Only
Analyzer
Only
Analyzer
Only
360 Degree View Available N/A N/A N/A N/A N/A 360° View
Setup Example Available N/A N/A N/A N/A N/A N/A
Model Picture
OL80 Ozone Module
(Single Stage)
N/A N/A N/A N/A N/A N/A
OL100 Ozone Module
(Double Stage)
N/A N/A N/A N/A N/A N/A
Flowmeter - 500cc/min (Standard) or Customer Specified N/A N/A N/A N/A N/A N/A
10-Step Ozone
Output Regulation
N/A N/A N/A N/A N/A N/A
10-Turn High Resolution Ozone Output Regulation N/A N/A N/A N/A N/A N/A
Combination of 10-Step Ozone Output Regulation and 10-Turn High Precision Ozone Output Regulation N/A N/A N/A N/A N/A N/A
External Ozone Output Regulation
(EXT O3 Control Port)
N/A N/A N/A N/A N/A N/A
Internal Ozone Destructor O
(+60U$)
S O
(+60U$)
S S S
Semi-Automatic Syringe Adapter with EXT Syringe Control Port O
(+425U$)
O
(+425U$)
O
(+425U$)
O
(+425U$)
S S
Countdown Timer & Buzzer N/A N/A N/A N/A N/A N/A
Ozone Analyzer Module Standard Range 0-200 µg/ml
(0-15% by weight)
200µg/ml
(200mg/l)
(200g/m3)
200µg/ml
(200mg/l)
(200g/m3)
200µg/ml
(200mg/l)
(200g/m3)
200µg/ml
(200mg/l)
(200g/m3)
200µg/ml
(200mg/l)
(200g/m3)
200µg/ml
(200mg/l)
(200g/m3)
Repeatability (% scale)
Zero Drift (% scale)
Response (to 95% - Flow Dependant)
1%
1%
2sec.
1%
1%
2sec.
1%
1%
2sec.
1%
1%
2sec.
1%
1%
2sec.
1%
1%
2sec.
Compensation Pressure & Temp 3bar/ 43psi
5-45°C
3bar/ 43psi
5-45°C
3bar/ 43psi
5-45°C
3bar/ 43psi
5-45°C
3bar/ 43psi
5-45°C
3bar/ 43psi
5-45°C
LED Ozone Concentration Display S S S S S S
Microprocessor OzoneLab™ Programmable Controller Module N/A N/A N/A N/A N/A N/A
Banana Clip Ground Connection S S S S S S
Minimum & Maximum
Ozone Gas Flow Requirements
0.005 LPM
5.0 LPM
0.005 LPM
5.0 LPM
0.005 LPM
5.0 LPM
0.005 LPM
5.0 LPM
0.005 LPM
5.0 LPM
0.005 LPM
5.0 LPM
Adjustable 0-5VDC Analog Signal Output O
(+60U$)
O
(+60U$)
O
(+60U$)
O
(+60U$)
O
(+60U$)
O
(+60U$)
Software for Data Logging (COM1) O
(+60U$)
O
(+60U$)
S S O
(+60U$)
S
Luer Lock Kynar® Ozone Resist Fittings S S S S S S
Swagelok® Fittings
O
(+245U$)
O
(+245U$)
O
(+245U$)
O
(+245U$)
O
(+245U$)
O
(+245U$)
Wall Mounted Enclosure N/A N/A N/A N/A N/A N/A
Desktop Tower Enclosure with Handle/Stand - Stackable S S S S S S
Desktop Enclosure with 45° front panel N/A N/A N/A N/A N/A N/A
Folding Table for Desktop Enclosure with 45° front panel N/A N/A N/A N/A N/A N/A

Instrument Weight

3.1kg/7.0Lb 3.3kg/7.3Lb 3.3kg/7.3Lb 3.3kg/7.3Lb 3.3kg/7.3Lb 3.3kg/7.3Lb
Power Requirements 12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
100-240AC/12DC/4Amp Universal Adapter Included Included Included Included Included Included
 Marking Yes Yes Yes Yes Yes Yes
Base Price [U$] $5,345.00 $5,405.00 $5,405.00 $5,465.00 $5,830.00 $5,890.00
All prices are in US Dollars and do not include shipping and handling.

OLA Technical Data:
The "heart" of the OLA Ozone Analyzer is a microprocessor based, high precision ozone detection module working on UV absorption principle.

O3 Measuring Principle: UV Absorption (Beer Lambert Law)
Ozone Detection Range: 0 - 200 [µg/ml] | 0 - 13.5% by weight
Response Time: 2 seconds to 95%
Precision: +/-1% of full scale
Linearity: 1%
Zero Drift: 1% of full scale /month, non-cumulative
Compensation: Up to 3 p.s.i. pressure compensation
Visual Data Output: High visibility LED display || 0 - 200 [µg/ml]
O2/O3 Ports: Kynar® (PVDF) Female Luer Lock
Sample Flow: 0.1 - 1 [LPM] / 100 [ml/min] - 1000[ml/min]
Ozone Gas Fittings: Kynar® (PVDF) Female Luer Lock
Gas Pressure: Standard Range 0-3 p.s.i.
Flow Range: Standard Range 31-1000ml/min || Extended range 5-2000ml/min (MAX)
Temperature: Standard range 16-26C || Extended Range 10-30C
Cooling: Air cooled instrument
Power: 12VDC/3000mA (100-240VAC/12VDC Power Adapter w/IEC320 receptacle is included)
Enclosure: Aluminum construction with laboratory grade heat tempered coating
Enclosure Only: 10.00x 11.00x 4.00" || 102x 254x 279mm (WxDxH)
Size w/handle-stand
(folded):
12.00x 12.00x 4.75" || 120x 305x 305mm (WxDxH)
Weight: 3.0kg/6.6Lbs
Warranty: 12 months
Compliance: CE

For applications exceeding outlined conditions of operation, please contact us for more information on custom produced instruments and accessories.

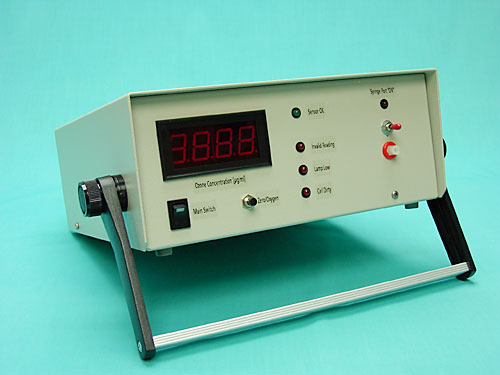

The below illustrated example is a standard OLA which has been equipped with a built-in Ozone Destructor, Data Logging Port, and Syringe Filling Port (OLA/DLS)

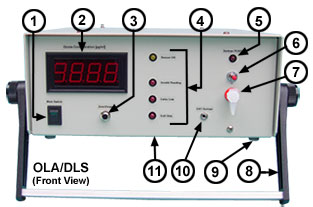

Front Panel View

  1. Main Power Switch
  2. High Visibility LED Display
  3. Automatic Zeroing Button (Oxygen)
  4. Ozone Analyzer Module Status Lights
  5. Syringe Port Status LED
  6. Syringe Port ON/OFF/(ON)
  7. Syringe Port / Ozone Outlet - Luer Lock (Red)
  8. Adjustable Handle/Stand
  9. Enclosure Bumpers
    (1/2"DIM & 1/4" High /Grey Non-Marking Flexible Polylastomer)
  10. EXT Syringe Port
  11. Powdered Coated Aluminum Case

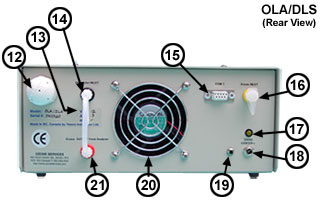

Rear Panel View

  1. Ozone Destructor Vent
  2. Removable Teflon™ tubing "BRIDGE"
  3. Ozone Destructor Inlet - Luer Lock (Black)
  4. Computer Data Logging and Communication Port
  5. Ozone Inlet - Luer Lock (Yellow)
  6. 12VDC Power Supply Pilot Light
  7. 12VDC Power Jack 2.1mm/Center "+"
  8. Banana Clip Ground Connection
  9. 3" Cooling Fan
  10. Ozone Outlet from Analyzer- Luer Lock (Red)

Most Frequently Ordered Models

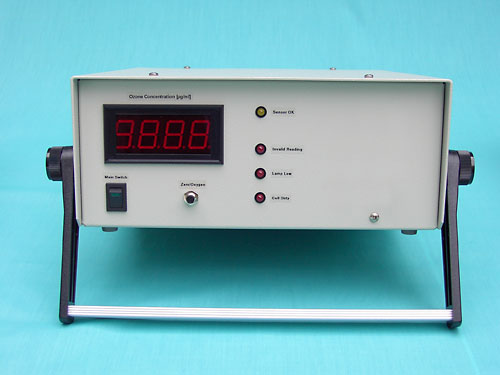

OLA

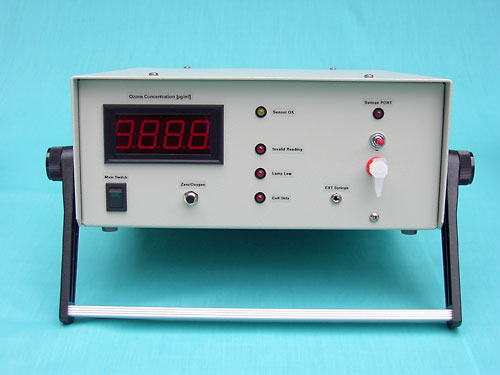

OLA/DLS

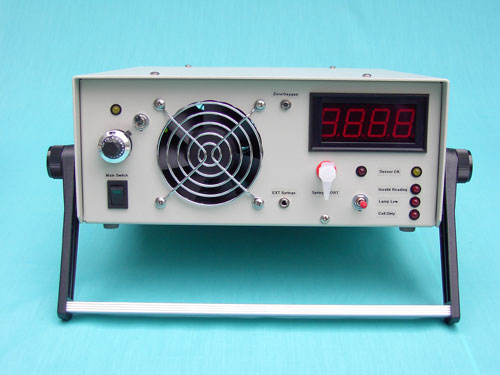

OL80A/DLS

Ozone Analyzer Setup Examples

An example of an OzoneLab™ Tower by stacking an OL100/T Ozone Generator and an OLA/DS Ozone Gas Analyzer.


For more information on OzoneLab™ Towers, click on above image

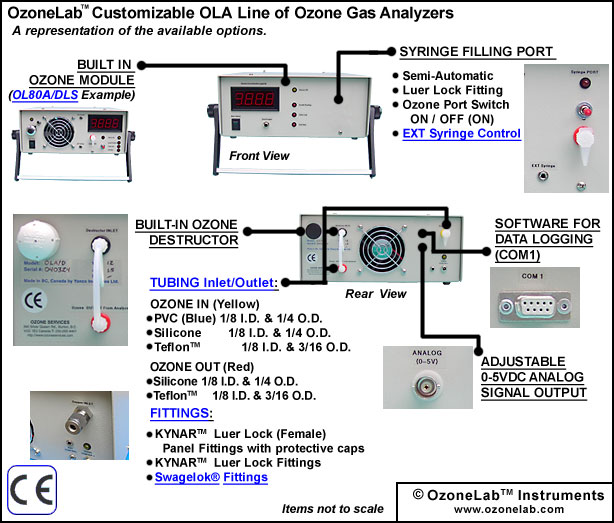

A full selection of optional ozone accessories is available to clients through our Ozone & UV Accessory Area.


Examples of External Ozone Production & Ozone Flow Control Devices

Foot Switch Control OLW - Transmitter Module C-30Z Ozone Monitor
