The
OzoneLab™ Team
has offered Ozone Exposure Services since
1999. We can help clients in designing custom exposure test(s) and/or
we can execute the tests specified by any of the most common ASTM standards
dealing with material ozone exposure:
- D 518 - Test Method for
Rubber Deterioration — Surface Cracking
- D 1149 - Test Method for
Rubber Deterioration — Surface Ozone Cracking in a Chamber
- D 1171 - Test Method for
Rubber Deterioration — Surface Ozone Cracking Outdoors or Chamber
(Triangular Specimens)
- D 3395 - Test Method for
Rubber Deterioration — Dynamic Ozone Cracking in a Chamber
- D 4575 - Standard
Test Methods for Rubber Deterioration — Reference and Alternative
Method(s) for Determining Ozone Level in Laboratory Test Chambers
We are able to provide
the following types of Material Exposure services:
Upon the completion
of the exposure testing, Ozone Services provides you with a report
specifying the type of exposure conducted.
For more
information about our Ozone Exposure Services, please contact
us at tech@ozoneservices.com.
It would be helpful if you can provide us with some information on
the material sample (i.e. size, shape, etc.) you are seeking to have
tested.
Exposure
to Ozone in gas form
| Maximum
Sample sizes: |
up
to 12x 12x 12" |
| Ozone
Concentration/standard testing: |
up to 100mg/l
(7% or 70,000ppm by weight O3/O2) |
| Ozone
Concentration/special arrangements: |
up to 140mg/l
(10% or 100,000ppm by weight O3/O2) |
| Regulation
of temperature in range: |
15-100°C
/ 60-212°F |
Exposure
to Ozone dissolved in distilled water
| Maximum
Sample sizes: |
up
to 12x 12x 12" |
| Ozone
Concentration/standard testing: |
up

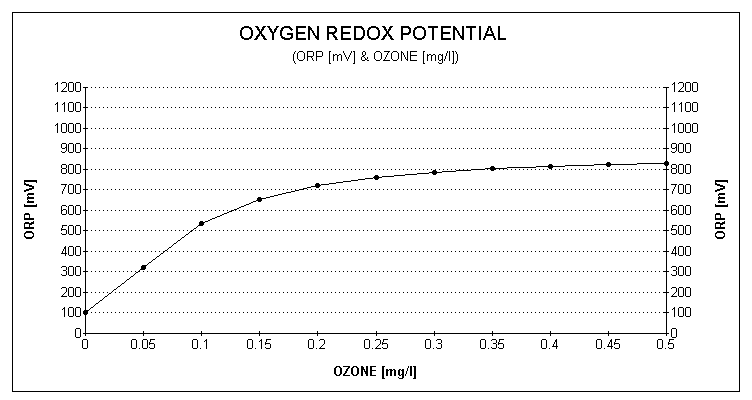

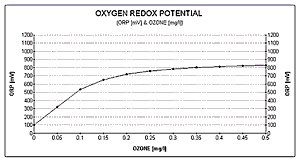

to 800mV ORP |
| Ozone
Concentration/special arrangements: |
up

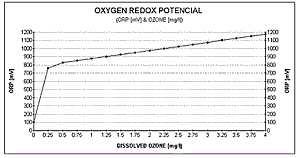

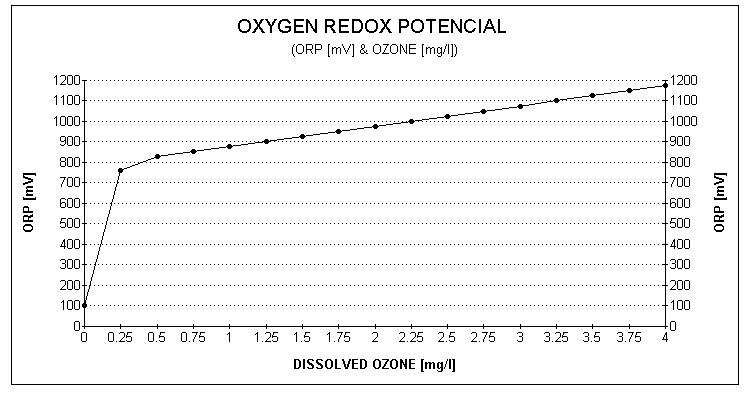

to 1200mV ORP |
| Regulation
of temperature in range: |
1-75°C
/ 32-167°F |

Exposure
to Ozone dissolved in customer specified liquid
| Maximum
Sample sizes: |
up
to 12x 12x 12" |
| Ozone
Concentration: |
depends
on the chosen liquid saturation limitations |
| Regulation
of temperature in range: |
15-100°C
/ 60-212°F |
|
