Files ImageHome > Products > Accessories > Tubing > 1/8ID - 1/4OD Tubing and Connections

1/8ID - 1/4OD tubing and connections is fully compatible with our new OzoneLab™ OL80 and OL100 ozone systems. 3/16ID - 5/16OD tubing is available primarily as a replacement component(s) for our older GE60 systems models. (manufactured until October 2002).

OzoneLab(TM) Oxygen and Ozone Tubing

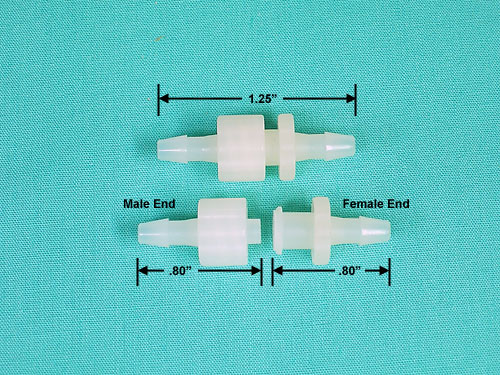

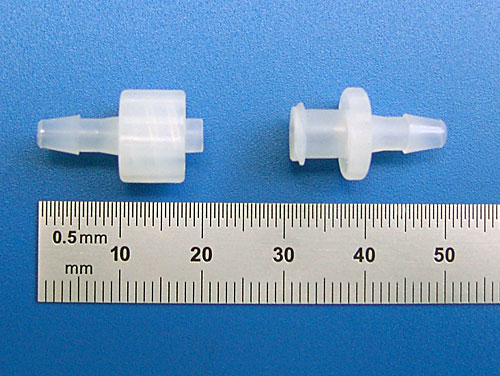

Kynar™ Luer Lock Fittings - (For 1/8ID & 1/4OD tubing only)

Female - Kynar™ Body:
ID A B C
1/8 0.078 0.125 0.450
ID D E F
1/8 0.100 0.183 0.250



Male - Kynar™ Body:
ID A B C
1/8 0.078 0.125 0.450
ID D E F
1/8 0.100 0.183 0.250

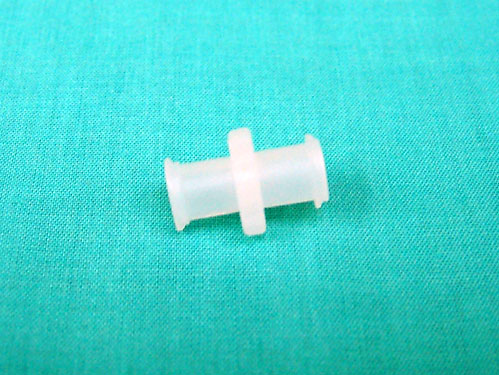

KynarT Female & Female Luer Lock Coupler

Luer Lock Protective Caps with strap


Pre-Selected Tubing & Fitting Sets for OzoneLab™ OL80 and OL100 systems


20FT
Laboratory
5FT
Medical
10FT
Medical
Kynar Male Luer Lock Fitting for 1/8"ID Tubing 6 pcs 6 pcs 6 pcs
KynarFemale Luer Lock Fitting for 1/8"ID Tubing 6 pcs 6 pcs 6 pcs
Kynar Luer Lock Coupler w/Female-Female 2 pcs 2 pcs 2 pcs
Kynar "Y" Fitting for 1/8"ID Tubing 2 pcs 2 pcs 2 pcs
0.22µm “O3” Filters w/Male-Female Luer Lock Fittings 2 pcs 2 pcs 2 pcs
"O2" PVC Tubing (Clear or Blue / 1/8"ID & 1/4"OD) N/A 5FT 10FT
“O2” & "O3" Silicone Tubing (Milky / 1/8"ID & 1/4"OD) N/A 5FT 10FT
“O2” & "O3" Teflon Tubing (1/8"ID & 3/16"OD) 20FT N/A N/A

Pre-Selected Fitting Set for OzoneLab(TM) OL80 and OL100 Systems


Miscellaneous Kynar™ Fittings

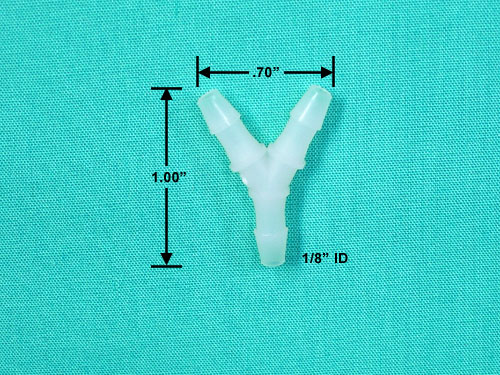

Kynar™ "Y" Fitting for 1/8"ID Tubing Kynar™ "Y" Fitting for 1/8"ID Tubing

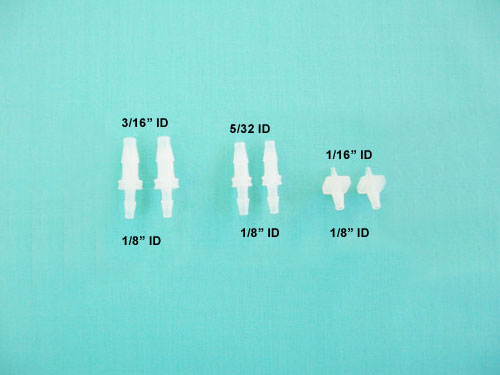

Kynar™ Adapters for 1/8"ID Tubing

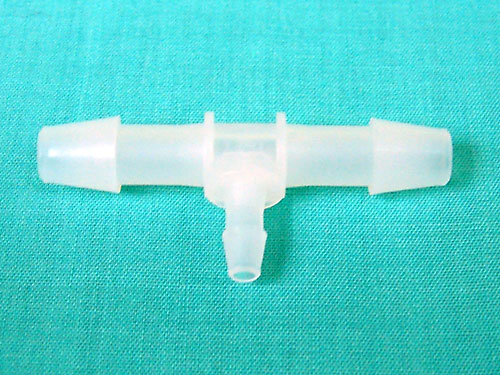

Kynar™ "T" Fitting with (2x) 3/16" Barb & (1x) 1/8" barb


Tubing & Fitting Assembly Example

Because every client has different needs for different lengths of tubing, it is impossible for us to provide all tubing lines already assembled.

In this example, we are using Blue Oxygen Tubing.  In each tubing set, there will be the tubing itself, and a number of Female and Male Luer Lock Connectors. Use Male connectors to make needed tubing connections.

Inserting Male Luer Lock Connector
into tubing
Attaching tubing to generator
