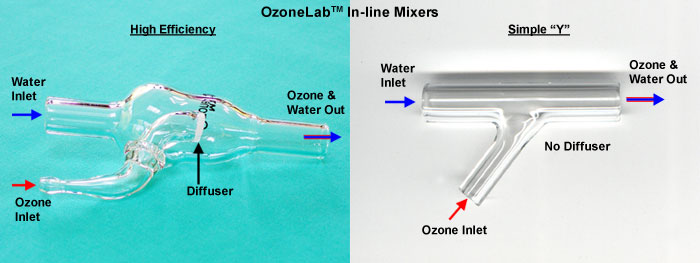

Ozone Services provides in-line mixers in both high efficiency and simple "Y" versions.

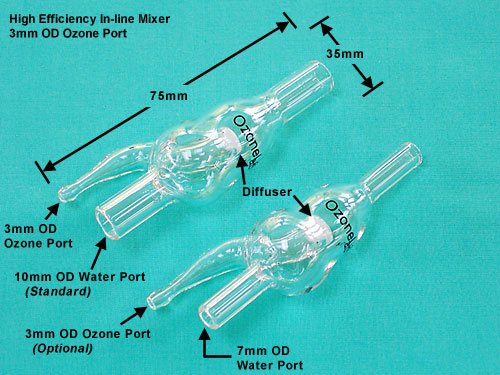

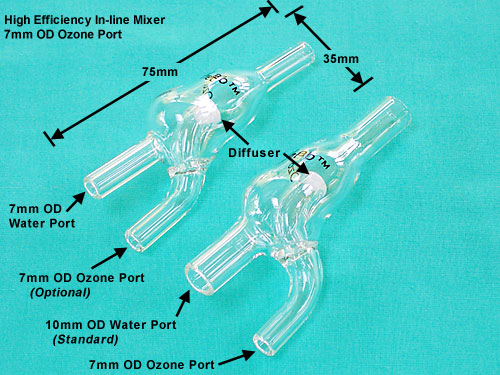

High Efficiency In-line Mixer
Material: Pyrex
Ozone Diffuser: Fused Glass // 40-50 micron
Water IN/OUT Ports:

Standard:            10mm OD (for 3/8" ID Tubing)
Custom Order:      7mm OD

Ozone INLET Port:

Standard:               3mm OD (for 1/8" ID Tubing)
Custom Order:      7mm OD

Size: L = 75 // W = 35mm

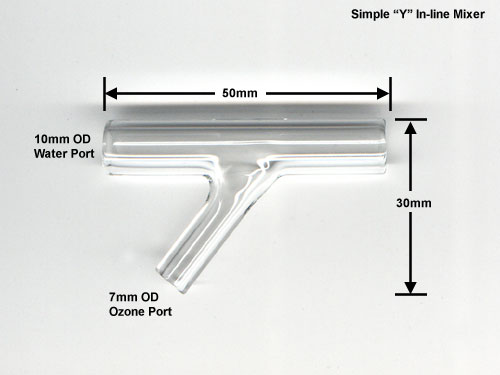

Simple "Y" In-line Mixer
Material: Pyrex
Ozone Diffuser: None
Water IN/OUT ports: Standard - 10mm OD
Size: L = 50 // W = 30mm
